تولید کننده: CNTD

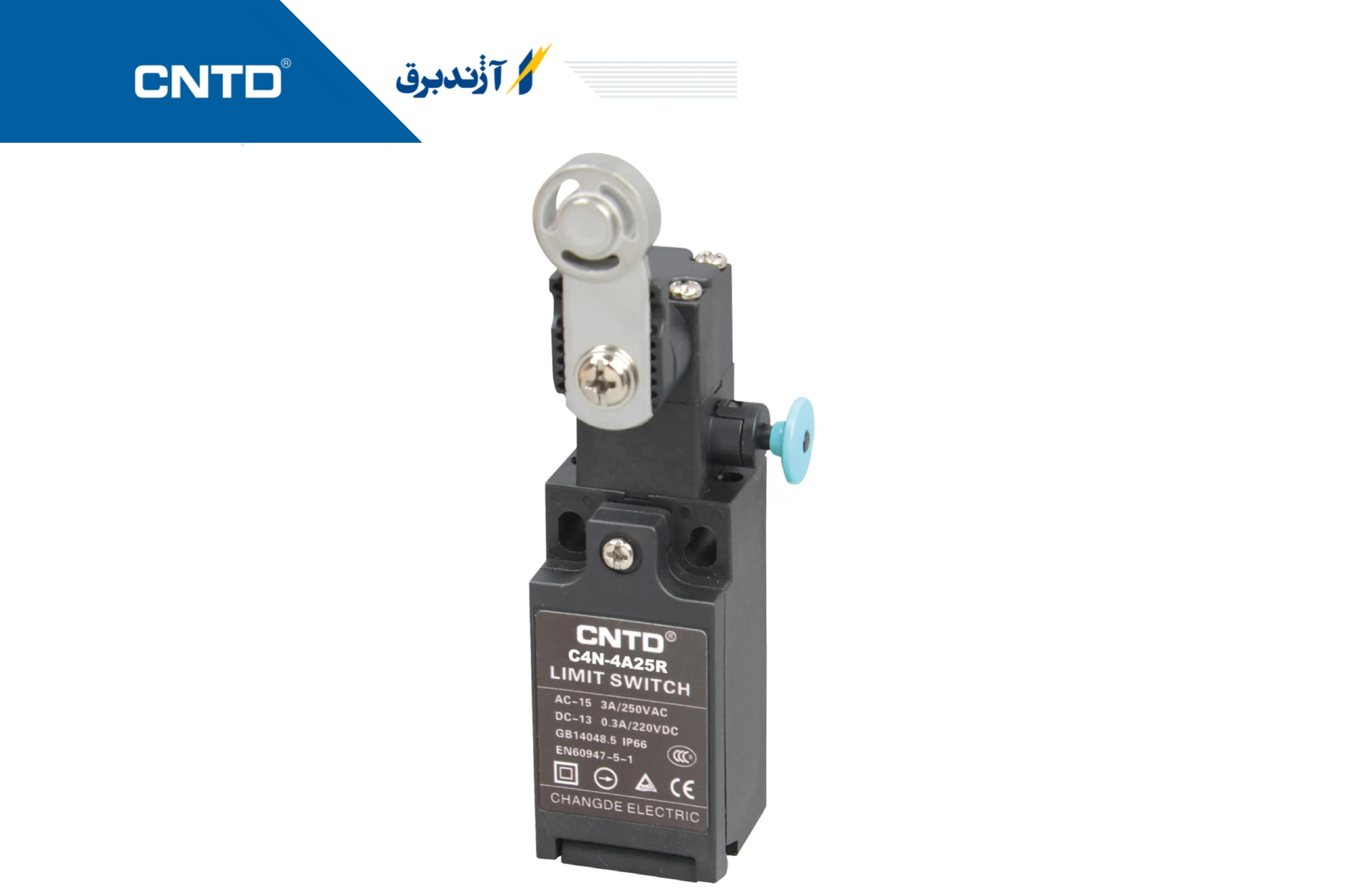

میکروسوییچ دو طرفه ضامن دار با اهرم و قرقره فلزی مدل C4N-4A25R

0/00ريال

شناسه کالا در انبار: C4N-4A25R

دسترسی: موجود نیست

تعداد:

ویژگی های محصول

1. تجهیز عمل باز اجباری (فقط کنتاکت NC)، برای قطع ارتباط زمانی که کنتاکت دارای فیوزینگ و خرابی های دیگر باشد
2. ساختار ضد آب

مشخصات فنی:

Protection level		IP66
Life	Electrical	More than 300,000 times
Operating speed		1mm-0.5m/s
Operating frequency		Max. 30 times/min
Contact resistance		25 mΩ or less
Minimum working load		1mA resistive load below DC5V (N standard reference value)
Rated insulation voltage (Ui)		300V
Electric shock protection grade		Class II (double insulated)
Pollution degree (Using conditions)		Pollution degree 3 (EN60947-5-1)
Withstand voltage (EN60947-5-1)		Between homopolar terminals: 2.5kV
		Between heteropolar terminals: 2.5kV
		Between terminals and uncharged metal parts: 6kV
Insulation resistance		Above 100MΩ
Contact gap		Minimum 2×0.5mm quick-action type, Minimum 2×2mm slow-action type
Vibration	Malfunction	10 ～ 55Hz 0.75mm single amplitude
Impact	Duration	1,000m/s2
	Malfunction	300m/s2
Ambient temperature		Using：-20~+70℃（With no icing）
Ambient humidity		Less than 95% RH
Weight		About 92g
