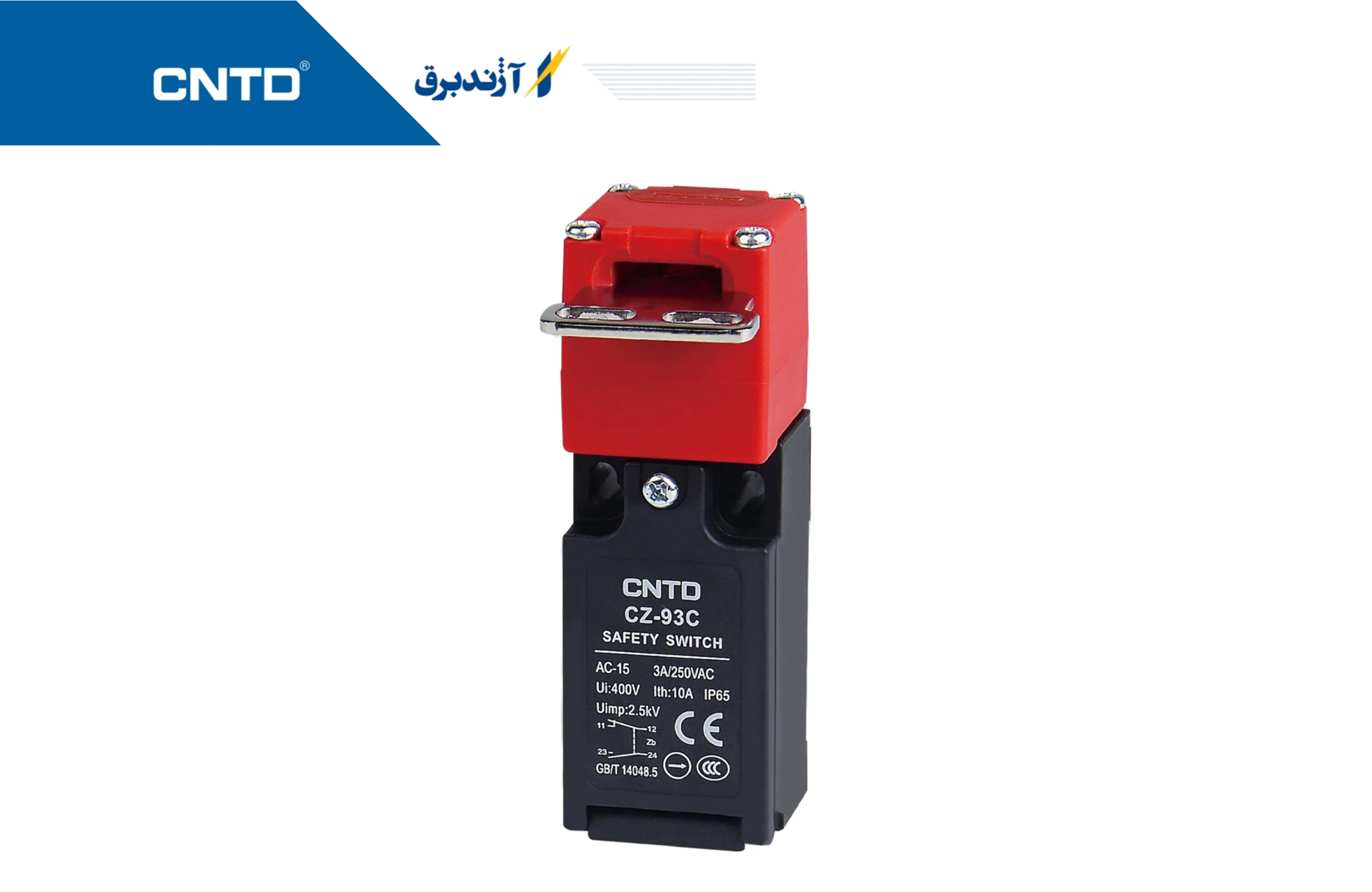

میکروسوئیچ CNTD خشابی مدلCZ-93CPM01

Rating

3A 240VAC (A300)

Operating speed

0.1m~0.5m/s

Operating frequency

30 operations/min

Contact resistance

25mΩ max. (initial).

Insulation resistance

100mΩ min. (at 500VDC)

Rated insulation voltage(UI)

400V

Dielectric strength

AC2500V/Umip 4KV

Vibration

10 to 55Hz, 1.5mm double amplitude

 Shock

Mechanical: Approx. 1000m/s2 (Approx. 100G'S) Electrical: Approx. 300m/s2 (Approx. 30G'S)

Ambient temperature

Using：-20~+70℃（With no icing）

Ambient Humidity

< 95% RH

Electrical life

150,000 operations/min.

Protection level

IP65 (IEC Standard)

Rated Voltage

Noninductive Load (A)

Inductive Load (A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

125 VAC

10

3

1.5

10

5

2.5

250 VAC

10

2

1

10

3

1.5

400 VAC

10

1.5

0.8

3

1.5

0.8

8 VDC

10

6

3

10

6

6

14 VDC

10

6

3

10

6

6

30 VDC

6

4

3

6

4

4

125 VDC

0.8

0.2

0.2

0.8

0.2

0.2

250 VDC

0.4

0.1

0.1

0.4

0.1

0.1
