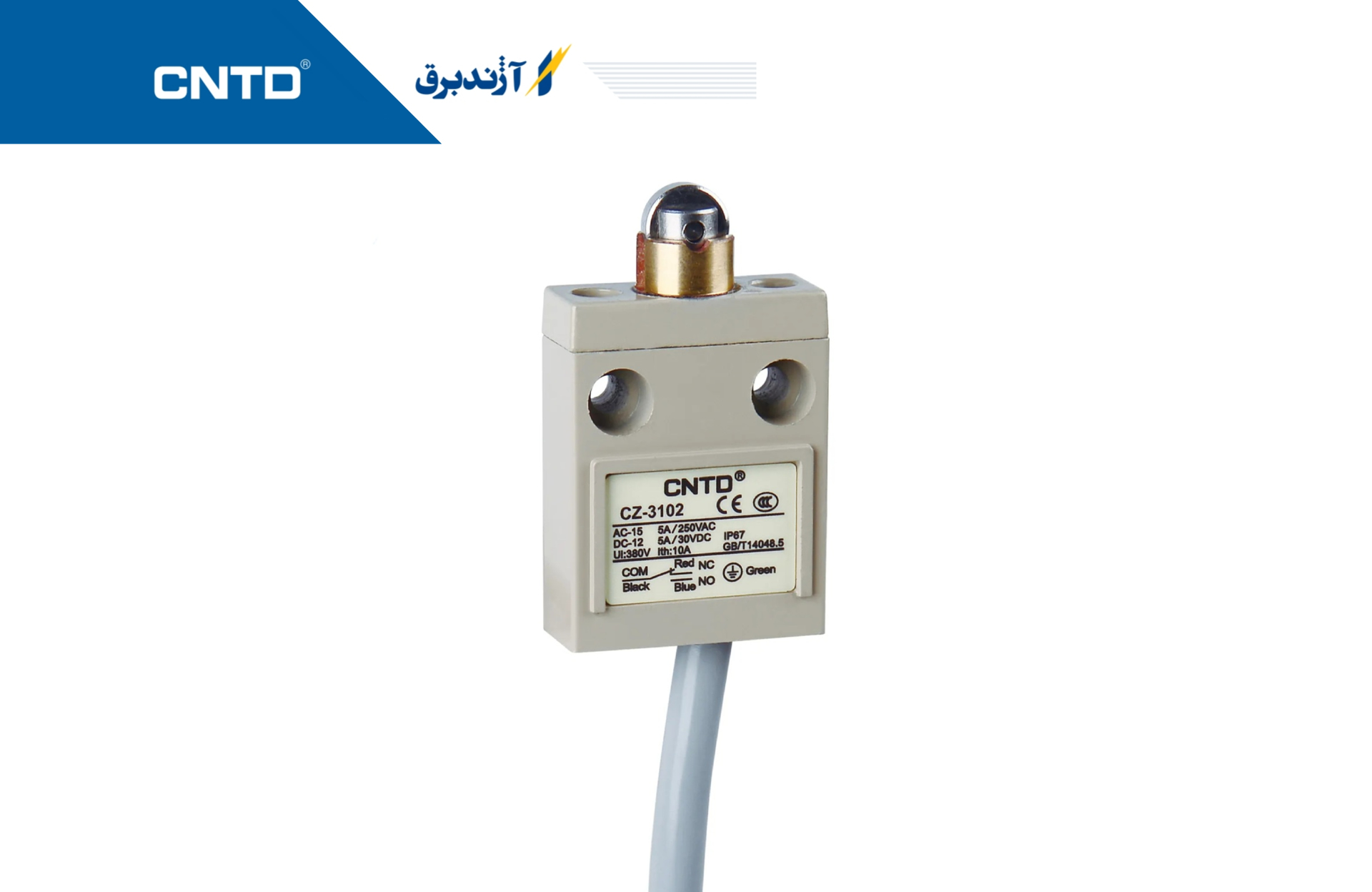

لیمیت سوییچ فشاري قرقره دار واترپروف مدل CZ-3102

Rating

2A 250VAC

Operating speed

1mm~1m/s( Swing rod type)

0.1mm~0.5m/s( Plunger type)

Operating frequency

Electrical:30 operations/min.

Contact resistance

25mΩ max.(initial)

Inslation resistance

100mΩ min.(at 500VDC)

Dielectric strength

1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity

1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts

1500VAC, 50/60 Hz for 1 minute between each terminal and ground

Vibration Frequency

10 to 55HZ,1.5mm double amplitude

Shock

Ambienttemperature

Using：-20~+70℃（With no icing）

Humidity

< 95% RH

Electrical life

 200,000 operations/min.

Weight

 Approx.360g(cable length 3m) Approx.540g(cable length 5m)

Protection level

IP67

Contact

1NO+1NC

Rated Voltage

Noninductive Load (A)

Inductive Load (A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

5 (0.1)
3

1.5
1

3
2

5 (0.1)
5 (0.1)
4 (0.1)
0.4
0.2

2
2
2
0.05
0.03

5
4
3
0.4
0.2

4
4
3
0.4
0.2

3
3
3
0.05
0.03
