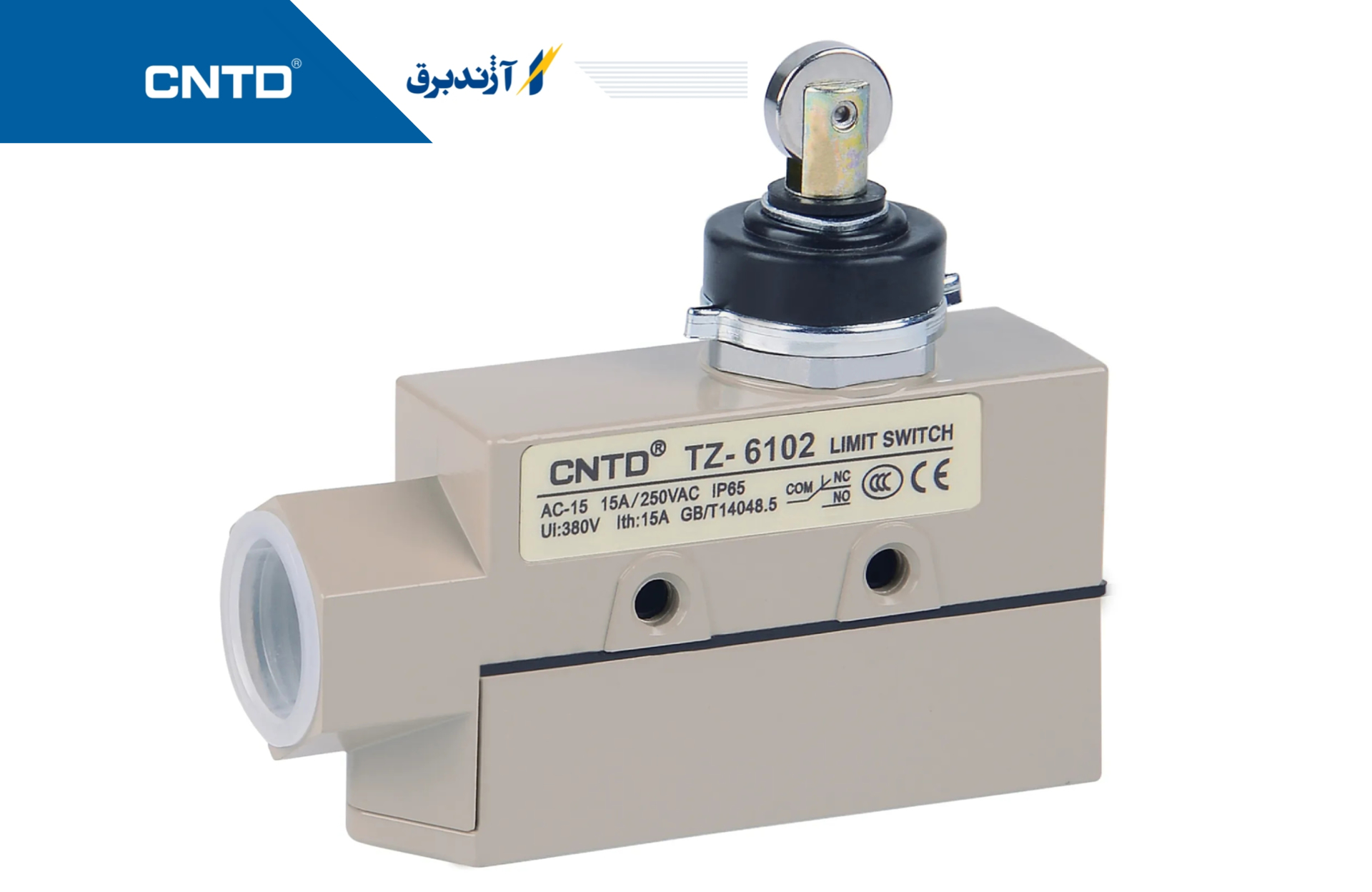

لیمیت سوییچ فشاري تیپ کتابی طرح امرن بدون مهره نصب مدل TZ-6102

Operation speed

5mm-0.5m/s

Operating frequency

Electical: 20 operations/min

Contact resistance

25mΩ max. (initial value）

Insulation resistance

100mΩ min. （below 500VDC）

Dielectric strength

1500VAC, 50/60 Hz for 1 minute between terminals of the same polarity

1500VAC, 50/60 Hz for 1 minute between current-carrying and non--current-carrying metal parts

1500VAC, 50/60 Hz for 1 minute between each terminal and ground

Vibration

10-55Hz,1.5mm double amplitude

Shock

Mechanical durable: 1, 000m/Sec2 (about 100G'S)

Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature

Using：-20~+70℃（With no icing）

Humidity

<95% RH

Electrical life

500,000 operations above

Degree of protection

IP66

Contact

1NO+1NC

Rated Voltage

Noninductive Load (A)

Inductive Load (A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

5
5

5
5

1.5
1

3
3

3
3

2
1.5

1
0.8

8VDC

5

5

3

3

5

4

3

3

14VDC

5

5

3

3

4

4

3

3

30VDC

5

5

3

3

4

4

3

3

125VDC

0.4

0.4

250VDC

0.2

0.2

Inrush Current

N.C: below 24A, N.O: below 12A
