    تولید کننده: CNTD

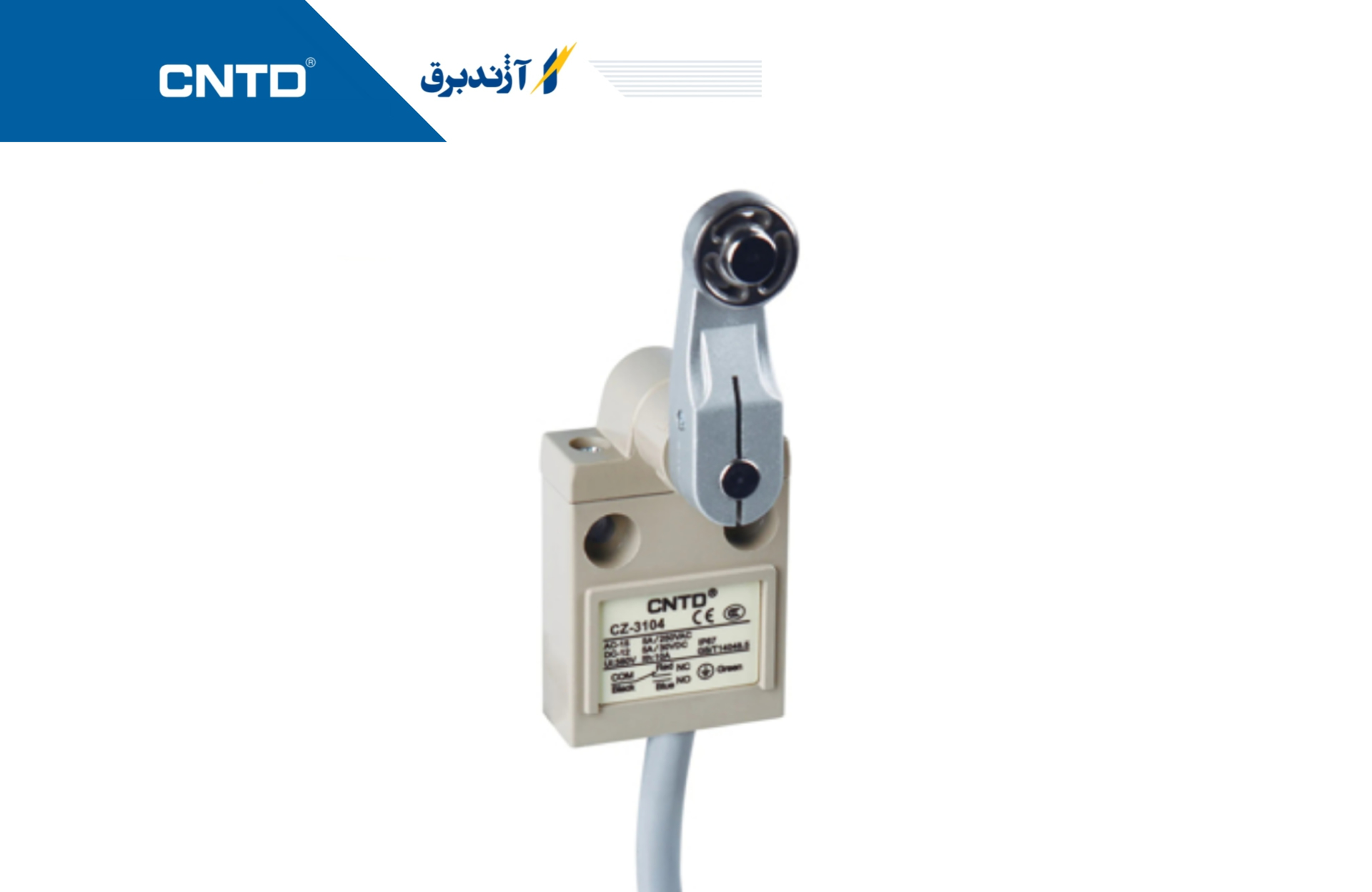

    لیمیت سوییچ دو طرف ساده واترپروف مدل CZ-3104

    9,360,000/00ريال
    شناسه کالا در انبار: CZ-3104

    ویژگی های محصول:

    استحکام مکانیکی بالا، جنس ریخته گری آلومینیومی
    ساختار ضد آب، ضد روغن و ضد گرد و غبار
    محرک های مختلف برای کاربردهای مختلف

    ​مشخصات فنی:



    Rating

    2A 250VAC



    Operating speed

    1mm~1m/s( Swing rod type)

    0.1mm~0.5m/s( Plunger type)

    Operating frequency

    Electrical:30 operations/min.

    Contact resistance

    25mΩ max.(initial)

    Inslation resistance

    100mΩ min.(at 500VDC)



    Dielectric strength

    1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity

    1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts

    1500VAC, 50/60 Hz for 1 minute between each terminal and ground

    Vibration Frequency

    10 to 55HZ,1.5mm double amplitude



    Shock



    Mechanical:Approx.1000m/s2 (Appprox.100G'S)
    Electrical:Approx.500m/s2 (Approx.50G'S)



    Ambienttemperature

    Using:-20~+70℃(With no icing)

    Humidity

    < 95% RH

    Electrical life

     200,000 operations/min.

    Weight

     Approx.360g(cable length 3m) Approx.540g(cable length 5m)

    Protection level

    IP67

    Contact

    1NO+1NC



     جریان نامی:



    Rated Voltage

    Noninductive Load (A)

    Inductive Load (A)

    Resistance Load

    Lamp Load

    Inductive Load

    Motor Load

    NC

    NO

    NC

    NO

    NC

    NO

    NC

    NO



    125 VAC
    250 VAC





    5 (0.1)
    3



    1.5
    1



    0.7
    0.5





    3
    2



    2.5
    1.5





    1.3
    0.8





    8 VDC
    14 VDC
    30 VDC
    125 VDC
    250 VDC





    5 (0.1)
    5 (0.1)
    4 (0.1)
    0.4
    0.2



    2
    2
    2
    0.05
    0.03



    5
    4
    3
    0.4
    0.2



    4
    4
    3
    0.4
    0.2



    3
    3
    3
    0.05
    0.03
