    تولید کننده: CNTD

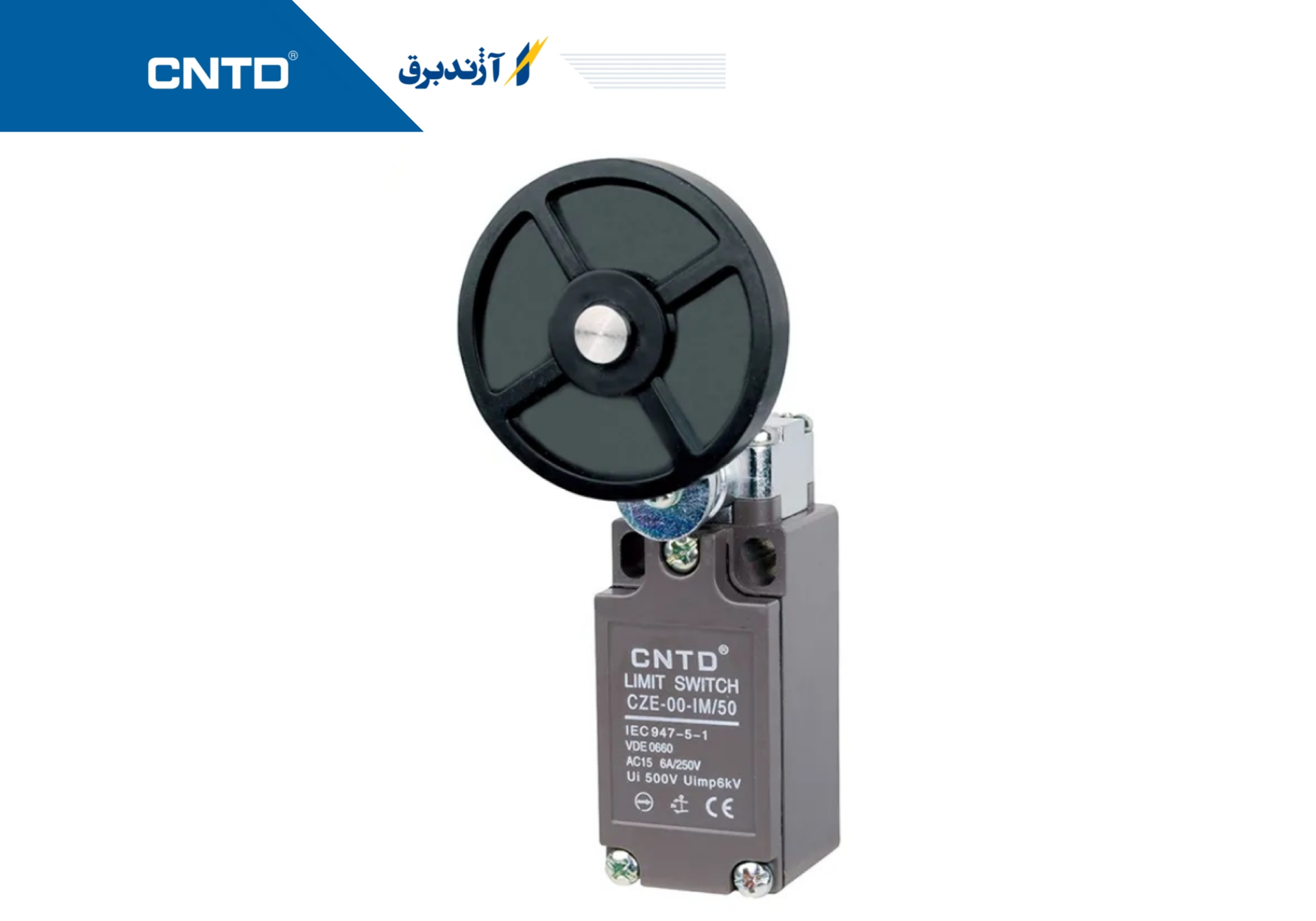

    لیمیت سوییچ دو طرفه با قرقره پلاستیکی CZE-00-EM/50

    €2494000/00

    مشخصات فنی:

    Opertaing frequency

    operat./sec (Hz)

    1

    Insulation resistance

    500 V DC

    100

    Dielectric strength

    50/60 Hz per 1* V AC

    2500

    Rated insulation voltage

    Ui IEC947-5-1

    V AC

    500

    Rated thermal current

    Ithe IEC947-5-1

    A

    10



    Rated operating current

    Category AC15 A300





    Category DC13 nQ300

    IEC 947-5-1/EN60947-5- le



    le





    24V
    125V
    230V
    400V
    24V
    48V
    120V
    250V







    A
    A
    A
    A
    A
    A
    A
    A





    10

    6

    4

    3

    10

    4

    1

    0.4

    Contact resistance IEC255-7 cat.3 initial value MΩ

    25

    Short circuit protective devices



    IEC269(IEC947-5-1)
    gl or gG type fuse



    A

    10

    Rated conditionals short circuit current IEC947-5-1

    A

    100

    Pollution degree IEC947-5-1

    3

    Protection degree EN 60529 IP

    66

    Protection against electric shock

    plastic metal



    class
    class



    Vibration resistance

    IEC68-2-6

    mm

    0.35 ± 15%(10 ÷55 Hz ± 1 Hz)

    Shock resistance

    IEC68-2-27

    11 ms

    g

    30

    Mechanical life

    cycles min

    15.000.000

    Electrical life



    at 250VAC 6A with resistance load cos β=1
    at 250VAC 6A with resistance load cos β=0.4





    cycles min
    cycles min



    500.000

    500.000

    Distance between contacts



    snap action type
    low action type



    mm mm

    2 × 1,25



    2 ×2

    Terminals



    type
    screw
    protection degree
    material
    Max. screw tightening torque







    M
    IP
    N cm (kg cm)
    mm2
    mm2
    mm2



    Screw with combined notch and retravtable plate

    (notch Ph. size 1)

    3,5

    20A

    Steel class 8.8/Galvanized

    120(12,24)



    max connecting capacity
    with prod terminal
    terminal numbering



    rigid cable fiexible cable

    2 × 1,5

    2 × 1,5

    1 × 1,5

    In accordance with EN50013
